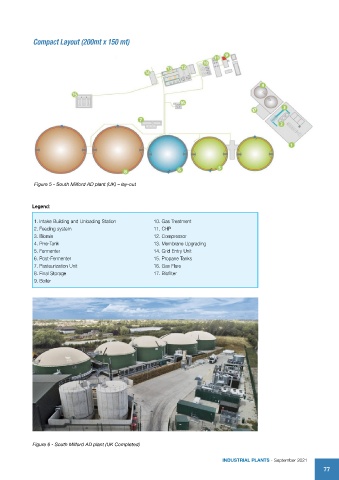

Compact Layout (200mt x 150 mt)
Figure 5 - South Milford AD plant (UK) – lay-out
Legend:
1. Intake Building and Unloading Station 10. Gas Treatment
2. Feeding system 11. CHP
3. Biomix 12. Compressor
4. Prre-Tank 13. Membrane Upgrading
5. Fermenter 14. Grid Entry Unit
6. Post-Fermenter 15. Propane Tanks
7. Pasteurization Unit 16. Gas Flare
8. Final Storage 17. Biofilter
9. Boiler
Figure 6 - South Milford AD plant (UK Completed)
